Name: SG7815T
Brand: Microchip Technology
SKU: SG7815T
Availability: InStock

REF: SG7815T Microchip Technology

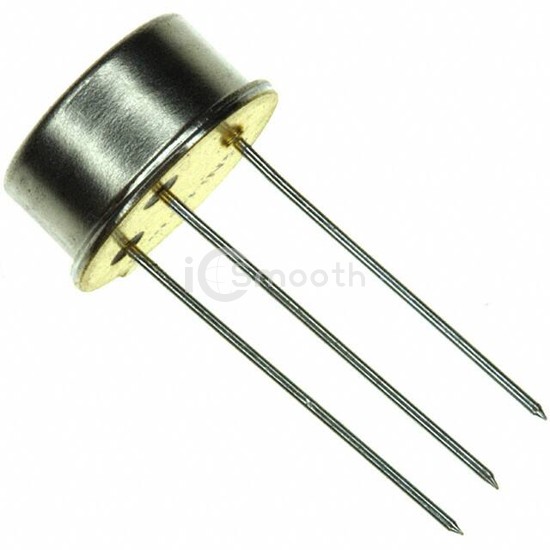

SG7815T

IC REG LINEAR 15V 1.5A TO39

SG7815T is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 15V 1.5A TO39. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case TO-205AD, TO-39-3 Metal Can, current - supply (max) 7 mA.

Datasheet Request a Quote

In Stock: 9,760

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	35V
Voltage - Output (Min/Fixed)	15V
Voltage - Output (Max)	-
Voltage Dropout (Max)	2.5V @ 500mA
Current - Output	1.5A

Current - Quiescent (Iq)	-
Current - Supply (Max)	7 mA
PSRR	60dB (120Hz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39
