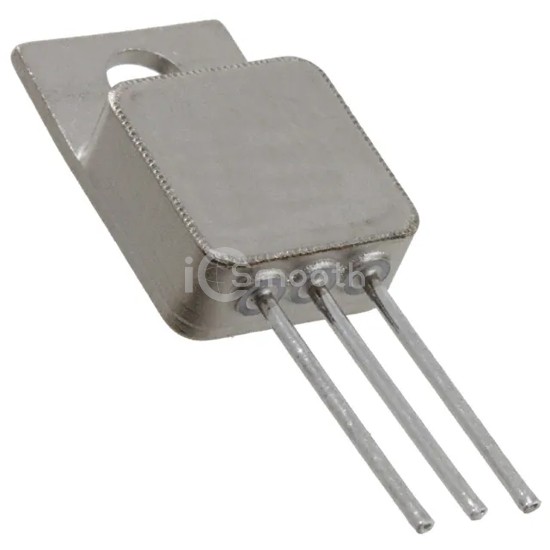

SG7812AIG

IC REG LINEAR 12V 1.5A TO257

SG7812AIG is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 12V 1.5A TO257. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case TO-257-3, current - supply (max) 7 mA.

Datasheet Request a Quote

In Stock: 7,213

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	50V
Voltage - Output (Min/Fixed)	12V
Voltage - Output (Max)	-
Voltage Dropout (Max)	2.5V @ 500mA
Current - Output	1.5A

Current - Quiescent (Iq)	-
Current - Supply (Max)	7 mA
PSRR	61dB (120Hz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	TO-257-3
Supplier Device Package	TO-257
