SG7805K-883B

In Stock: 7,374

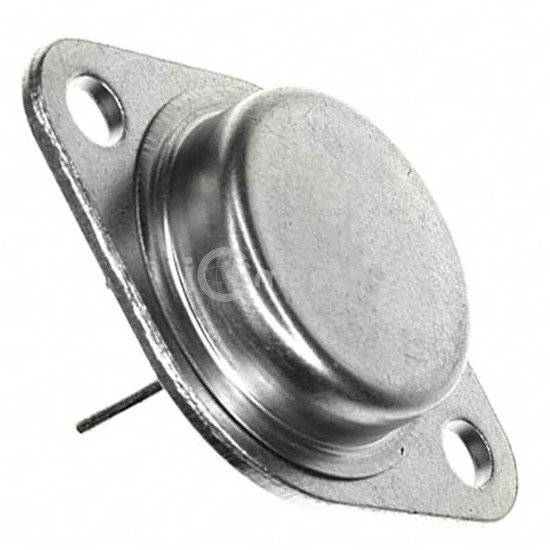

SG7805K-883B - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: SG7805K-883B Microchip Technology
SG7805K-883B

Microchip Technology

IC REG LINEAR 5V 1.5A TO3

SG7805K-883B is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 5V 1.5A TO3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case TO-3P-3, SC-65-3, current - output 1.5A.

Datasheet Request a Quote

In Stock: 7,374

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)35V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)2.5V @ 1A
Current - Output1.5A
Current - Quiescent (Iq)7 mA
Current - Supply (Max)-
PSRR68dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3
