Name: SG3526BDW
Brand: Microchip Technology
SKU: SG3526BDW
Availability: InStock

REF: SG3526BDW Microchip Technology

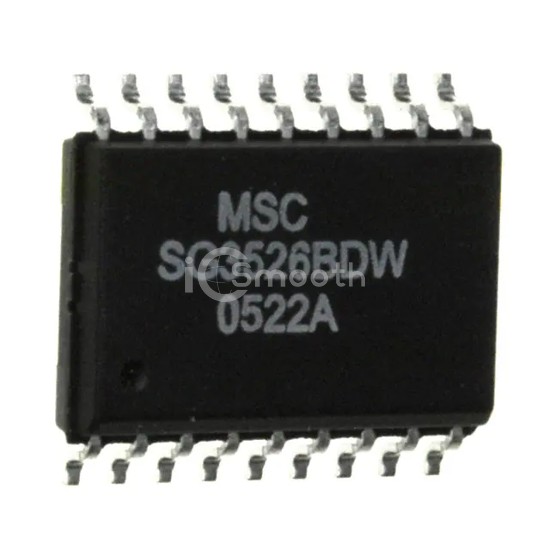

SG3526BDW

IC REG CTRLR BUCK/FLYBACK 18SOIC

SG3526BDW is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR BUCK/FLYBACK 18SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 8V ~ 35V, package / case 18-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,546

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down, Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck, Flyback
Number of Outputs	2
Output Phases	1
Voltage - Supply (Vcc/Vdd)	8V ~ 35V
Frequency - Switching	1Hz ~ 500kHz

Duty Cycle (Max)	49%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	18-SOIC (0.295", 7.50mm Width)
Supplier Device Package	18-SOIC
