Name: SG2846N
Brand: Microchip Technology
SKU: SG2846N
Price: 7.27 USD
Availability: InStock

REF: SG2846N Microchip Technology

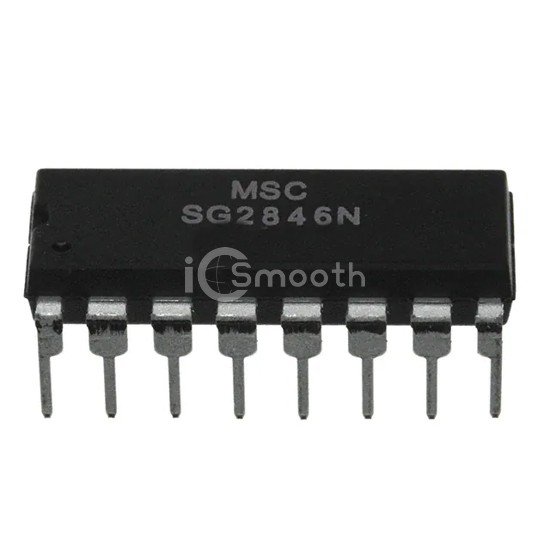

SG2846N

IC REG CTRLR MULT TOPOLOGY 16DIP

SG2846N is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR MULT TOPOLOGY 16DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8V ~ 40V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2,198

Tiered Pricing USD

1+ $7.2700 —

10+ $5.6090 -23%

25+ $5.1944 -29%

100+ $4.7388 -35% BEST

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Output Type	Transistor Driver
Function	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck, Boost, Push-Pull
Number of Outputs	2
Output Phases	1
Voltage - Supply (Vcc/Vdd)	8V ~ 40V
Frequency - Switching	1Hz ~ 500kHz

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable
Operating Temperature	-25°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-PDIP
