Name: SG2526DW
Brand: Microchip Technology
SKU: SG2526DW
Availability: InStock

REF: SG2526DW Microchip Technology

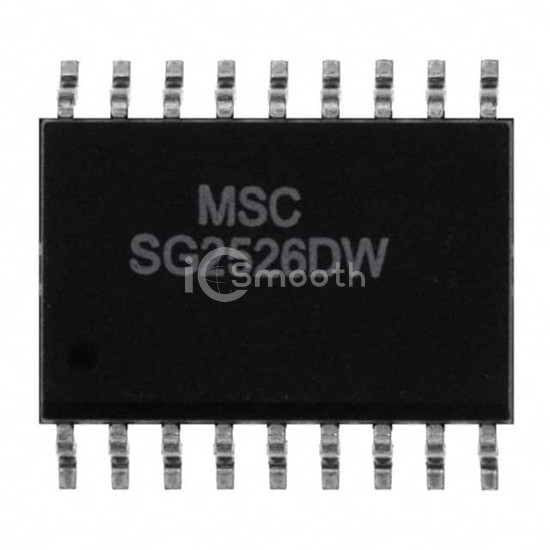

SG2526DW

IC REG CTRLR BUCK/FLYBACK 18SOIC

SG2526DW is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR BUCK/FLYBACK 18SOIC. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8V ~ 35V, package / case 18-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,042

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down, Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck, Flyback
Number of Outputs	2
Output Phases	1
Voltage - Supply (Vcc/Vdd)	8V ~ 35V
Frequency - Switching	1Hz ~ 350kHz

Duty Cycle (Max)	49%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Operating Temperature	-25°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	18-SOIC (0.295", 7.50mm Width)
Supplier Device Package	18-SOIC
