Name: SG2003J-JAN
Brand: Microchip Technology
SKU: SG2003J-JAN
Availability: InStock

REF: SG2003J-JAN Microchip Technology

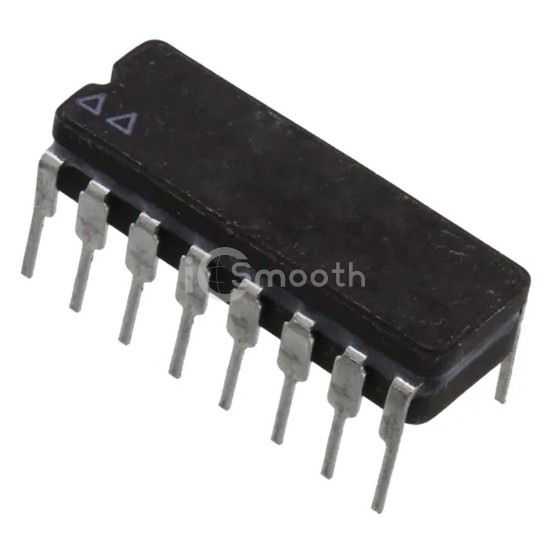

SG2003J-JAN

TRANS 7NPN DARL 50V 0.5A 16DIP

SG2003J-JAN is a Transistors - Bipolar (BJT) - Arrays manufactured by Microchip Technology. TRANS 7NPN DARL 50V 0.5A 16DIP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 16-CDIP (0.300", 7.62mm), current - collector (ic) (max) 500mA.

Datasheet Request a Quote

In Stock: 9,010

Specifications

13 parameters

Product Status	Active
Transistor Type	7 NPN Darlington
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 350mA, 2V

Power - Max	-
Frequency - Transition	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	16-CDIP (0.300", 7.62mm)
Supplier Device Package	16-CDIP
