Name: SG1846J-883B
Brand: Microchip Technology
SKU: SG1846J-883B
Availability: InStock

REF: SG1846J-883B Microchip Technology

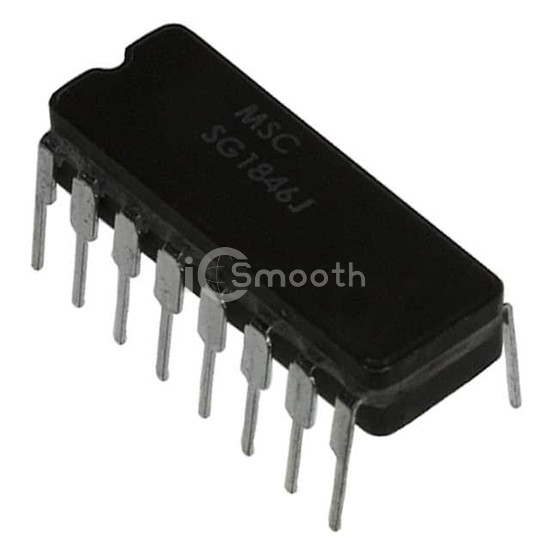

SG1846J-883B

IC REG CTRLR MULT TOPOLOGY 16DIP

SG1846J-883B is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR MULT TOPOLOGY 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply (vcc/vdd) 8V ~ 40V, package / case 16-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 6,450

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck, Boost, Push-Pull
Number of Outputs	2
Output Phases	1
Voltage - Supply (Vcc/Vdd)	8V ~ 40V
Frequency - Switching	1Hz ~ 500kHz

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	16-CDIP (0.300", 7.62mm)
Supplier Device Package	16-CERDIP
