Name: SG1526BJ
Brand: Microchip Technology
SKU: SG1526BJ
Availability: InStock

REF: SG1526BJ Microchip Technology

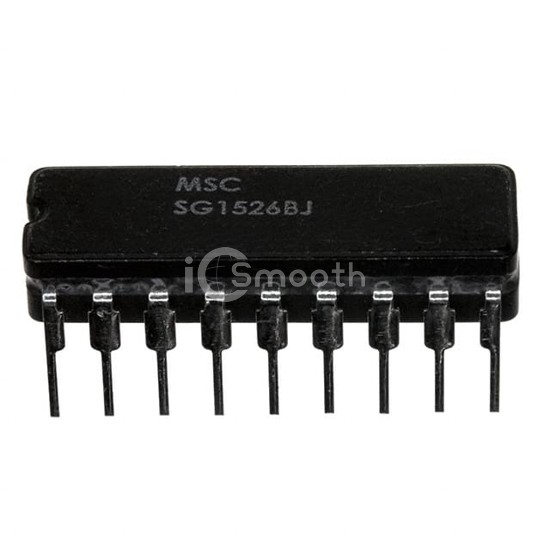

SG1526BJ

IC REG CTRLR BUCK/FLYBACK 18DIP

SG1526BJ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR BUCK/FLYBACK 18DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8V ~ 35V, package / case 18-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 8,801

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Output Type	Transistor Driver
Function	Step-Down, Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck, Flyback
Number of Outputs	2
Output Phases	1
Voltage - Supply (Vcc/Vdd)	8V ~ 35V
Frequency - Switching	1Hz ~ 500kHz

Duty Cycle (Max)	49%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	18-CDIP (0.300", 7.62mm)
Supplier Device Package	18-CDIP
