SG1525AJ-883B

In Stock: 6,613

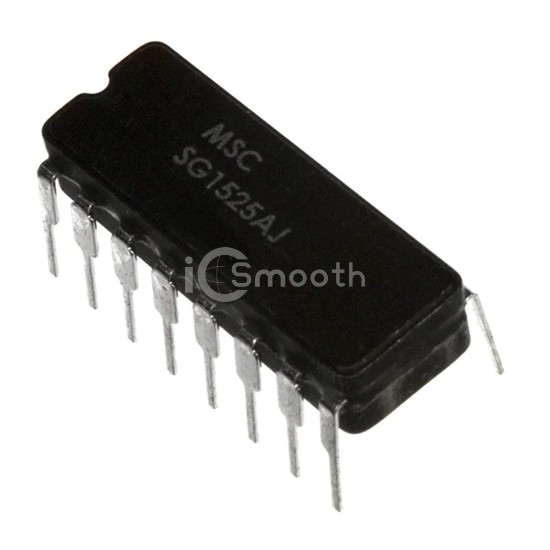

SG1525AJ-883B - Microchip Technology - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: SG1525AJ-883B Microchip Technology
SG1525AJ-883B

Microchip Technology

IC REG CTRLR PUSH-PULL 16JDIP

SG1525AJ-883B is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR PUSH-PULL 16JDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply (vcc/vdd) 8V ~ 35V, package / case 16-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 6,613

Specifications

18 parameters
Product StatusActive
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyPush-Pull
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)8V ~ 35V
Frequency - Switching100Hz ~ 350kHz
Duty Cycle (Max)49%
Synchronous RectifierYes
Clock SyncYes
Serial Interfaces-
Control FeaturesEnable, Frequency Control, Soft Start
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CERDIP
