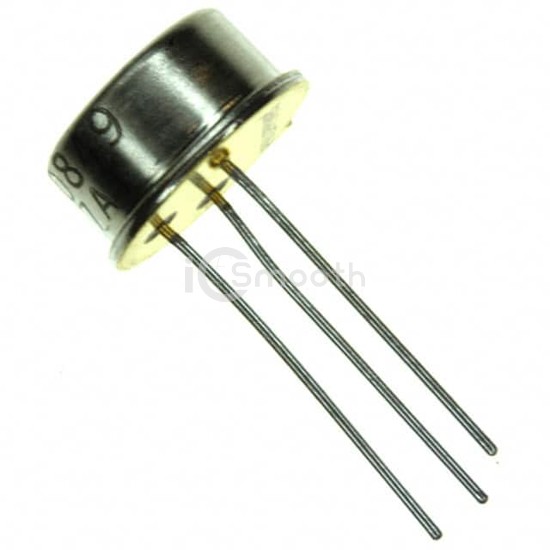

Name: SG117AT
Brand: Microchip Technology
SKU: SG117AT
Availability: InStock

REF: SG117AT Microchip Technology

SG117AT

IC REG LINEAR POS ADJ 500MA TO99

SG117AT is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR POS ADJ 500MA TO99. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case TO-205AD, TO-39-3 Metal Can, current - output 500mA.

Datasheet Request a Quote

In Stock: 4,082

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	37V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	37V
Voltage Dropout (Max)	-
Current - Output	500mA

Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	65dB ~ 80dB (120Hz)
Control Features	-
Protection Features	Over Current
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-99
