SG109T-JAN

In Stock: 2,055

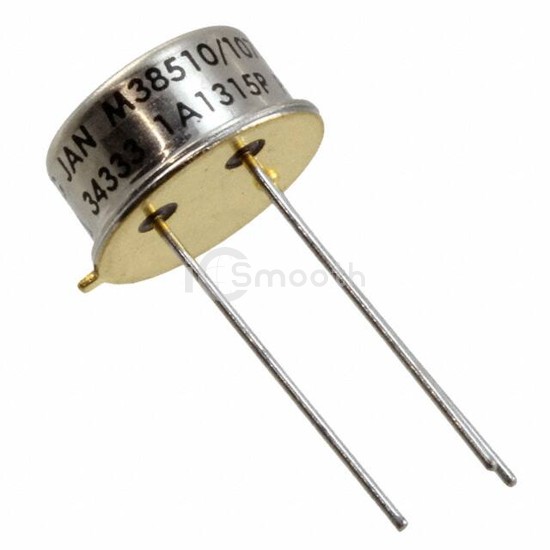

SG109T-JAN - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: SG109T-JAN Microchip Technology
SG109T-JAN

Microchip Technology

IC REG LINEAR 5.05V 1A TO39

SG109T-JAN is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 5.05V 1A TO39. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case TO-205AD, TO-39-3 Metal Can, current - output 1A.

Datasheet Request a Quote

In Stock: 2,055

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)25V
Voltage - Output (Min/Fixed)5.05V
Voltage - Output (Max)-
Voltage Dropout (Max)-
Current - Output1A
Current - Quiescent (Iq)10 mA
Current - Supply (Max)-
PSRR-
Control Features-
Protection FeaturesOver Temperature
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-205AD, TO-39-3 Metal Can
Supplier Device PackageTO-39
