Name: PIC16F684T-E/ST
Brand: Microchip Technology
SKU: PIC16F684T-E/ST
Price: 2.36 USD
Availability: InStock

REF: PIC16F684T-E/ST Microchip Technology

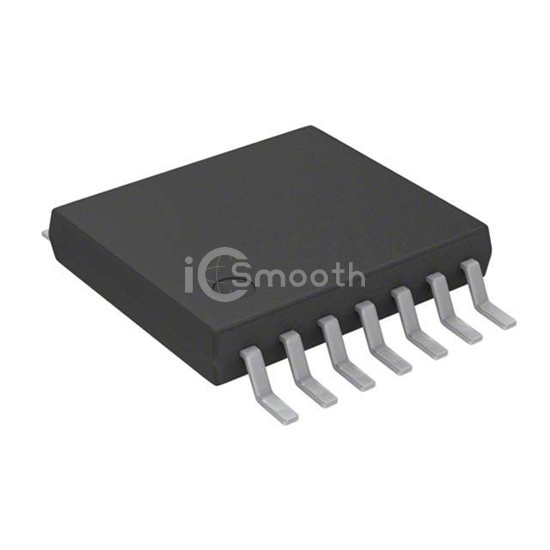

PIC16F684T-E/ST

Microchip Technology

IC MCU 8BIT 3.5KB FLASH 14TSSOP

PIC16F684T-E/ST is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 3.5KB FLASH 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2V ~ 5.5V, package / case 14-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 6,874

Specifications

18 parameters

Product Status	Active
Core Processor	PIC
Core Size	8-Bit
Speed	20MHz
Connectivity	-
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O	12
Program Memory Size	3.5KB (2K x 14)
Program Memory Type	FLASH

EEPROM Size	256 x 8
RAM Size	128 x 8
Voltage - Supply (Vcc/Vdd)	2V ~ 5.5V
Data Converters	A/D 8x10b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	14-TSSOP
