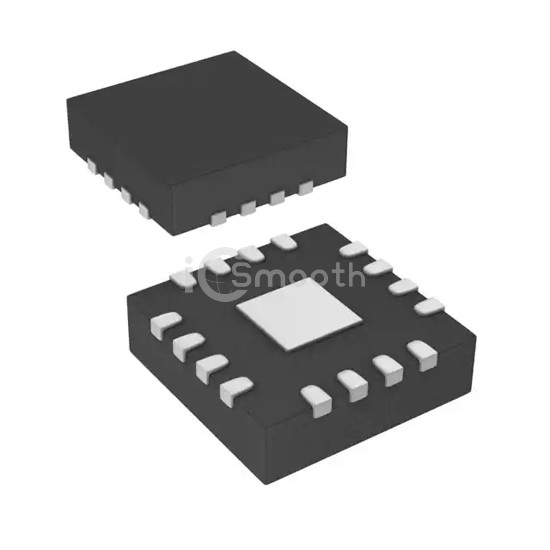

PIC16F506-I/MG

In Stock: 6,021
PIC16F506-I/MG - Microchip Technology - Embedded - Microcontrollers
REF: PIC16F506-I/MG Microchip Technology
PIC16F506-I/MG

Microchip Technology

IC MCU 8BIT 1.5KB FLASH 16QFN

PIC16F506-I/MG is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 1.5KB FLASH 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2V ~ 5.5V, package / case 16-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,021

Specifications

18 parameters
Product StatusActive
Core ProcessorPIC
Core Size8-Bit
Speed20MHz
Connectivity-
PeripheralsPOR, WDT
Number of I/O11
Program Memory Size1.5KB (1K x 12)
Program Memory TypeFLASH
EEPROM Size-
RAM Size67 x 8
Voltage - Supply (Vcc/Vdd)2V ~ 5.5V
Data ConvertersA/D 4x8b
Oscillator TypeInternal
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-VFQFN Exposed Pad
Supplier Device Package16-QFN (3x3)
