Name: PIC16F1509-I/ML
Brand: Microchip Technology
SKU: PIC16F1509-I/ML
Price: 1.58 USD
Availability: InStock

REF: PIC16F1509-I/ML Microchip Technology

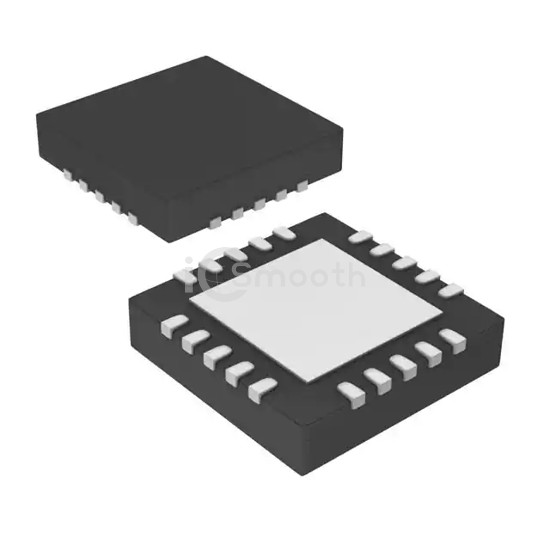

PIC16F1509-I/ML

Microchip Technology

IC MCU 8BIT 14KB FLASH 20QFN

PIC16F1509-I/ML is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 14KB FLASH 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 5.5V, package / case 20-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,590

Tiered Pricing USD

1+ $1.5800 —

25+ $1.4500 -8%

100+ $1.3000 -18% BEST

Specifications

18 parameters

Product Status	Active
Core Processor	PIC
Core Size	8-Bit
Speed	20MHz
Connectivity	I²C, LINbus, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O	17
Program Memory Size	14KB (8K x 14)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	512 x 8
Voltage - Supply (Vcc/Vdd)	2.3V ~ 5.5V
Data Converters	A/D 12x10b; D/A 1x5b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-QFN (4x4)
