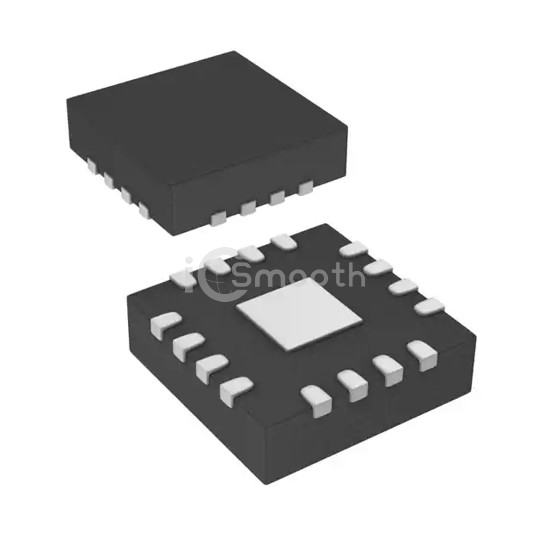

Name: PIC16F1503-E/MG
Brand: Microchip Technology
SKU: PIC16F1503-E/MG
Price: 1.20 USD
Availability: InStock

REF: PIC16F1503-E/MG Microchip Technology

PIC16F1503-E/MG

Microchip Technology

IC MCU 8BIT 3.5KB FLASH 16QFN

PIC16F1503-E/MG is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 3.5KB FLASH 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 5.5V, package / case 16-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,907

Tiered Pricing USD

1+ $1.2000 —

25+ $1.1000 -8%

100+ $1.0100 -16% BEST

Specifications

18 parameters

Product Status	Active
Core Processor	PIC
Core Size	8-Bit
Speed	20MHz
Connectivity	I²C, SPI
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O	11
Program Memory Size	3.5KB (2K x 14)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	128 x 8
Voltage - Supply (Vcc/Vdd)	2.3V ~ 5.5V
Data Converters	A/D 8x10b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-QFN (3x3)
