MICRF505LYML-TR

In Stock: 5,375

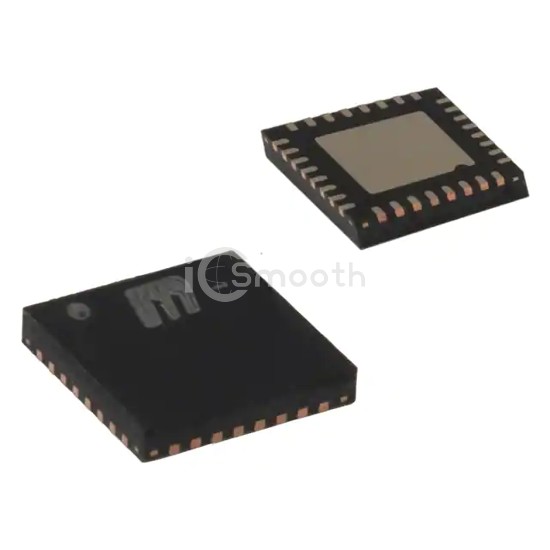

MICRF505LYML-TR - Microchip Technology - RF Transceiver ICs
REF: MICRF505LYML-TR Microchip Technology
MICRF505LYML-TR

Microchip Technology

IC RF TXRX ISM<1GHZ 32VFQFN

MICRF505LYML-TR is a RF Transceiver ICs manufactured by Microchip Technology. IC RF TXRX ISM<1GHZ 32VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.25V ~ 5.5V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,375

Specifications

19 parameters
Product StatusActive
TypeTxRx Only
RF Family/StandardGeneral ISM < 1GHz
Protocol-
ModulationFSK
Frequency850MHz ~ 950MHz
Data Rate (Max)200kbps
Power - Output10dBm
Sensitivity-111dBm
Memory Size-
Serial InterfacesSPI
GPIO-
Voltage - Supply2.25V ~ 5.5V
Current - Receiving8.6mA ~ 13.5mA
Current - Transmitting14mA ~ 28mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
