Name: MIC94310-SYMT-T5
Brand: Microchip Technology
SKU: MIC94310-SYMT-T5
Availability: InStock

REF: MIC94310-SYMT-T5 Microchip Technology

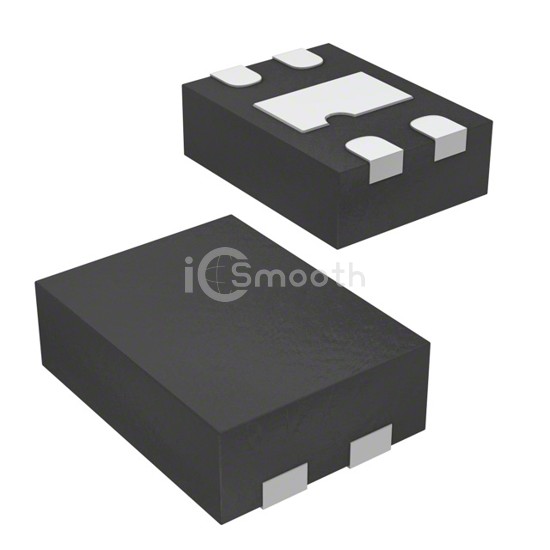

MIC94310-SYMT-T5

IC REG LINEAR 3.3V 200MA 4TDFN

MIC94310-SYMT-T5 is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 3.3V 200MA 4TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 4-UFDFN Exposed Pad, current - output 200mA.

Datasheet Request a Quote

In Stock: 3,081

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	3.6V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.1V @ 200mA
Current - Output	200mA

Current - Quiescent (Iq)	250 µA
Current - Supply (Max)	-
PSRR	85dB ~ 50dB (100Hz ~ 10MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	4-UFDFN Exposed Pad
Supplier Device Package	4-TDFN (1.2x1.6)
