MIC5320-SNYMT-TR

In Stock: 4,168

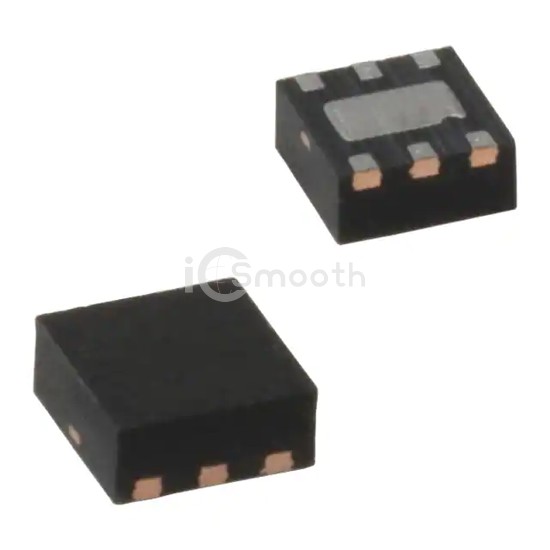

MIC5320-SNYMT-TR - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: MIC5320-SNYMT-TR Microchip Technology
MIC5320-SNYMT-TR

Microchip Technology

IC REG LINEAR 2.85V/3.3V 6TMLF

MIC5320-SNYMT-TR is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 2.85V/3.3V 6TMLF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-UFDFN Exposed Pad, 6-TMLF®, current - supply (max) 190 µA.

Datasheet Request a Quote

In Stock: 4,168

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)2.85V, 3.3V
Voltage - Output (Max)-
Voltage Dropout (Max)0.1V @ 150mA, 0.1V @ 150mA
Current - Output150mA, 150mA
Current - Quiescent (Iq)120 µA
Current - Supply (Max)190 µA
PSRR65dB ~ 45dB (1kHz ~ 20kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-UFDFN Exposed Pad, 6-TMLF®
Supplier Device Package6-TMLF® (1.6x1.6)
