Name: MIC5209-3.3BS TR
Brand: Microchip Technology
SKU: MIC5209-3.3BS TR
Availability: InStock

REF: MIC5209-3.3BS TR Microchip Technology

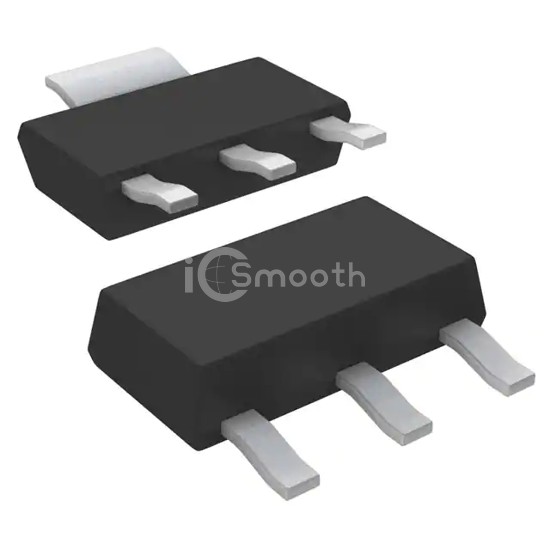

MIC5209-3.3BS TR

IC REG LIN 3.3V 500MA SOT223-3

MIC5209-3.3BS TR is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LIN 3.3V 500MA SOT223-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-261-4, TO-261AA, current - supply (max) 25 mA.

Datasheet Request a Quote

In Stock: 5,128

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.6V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	170 µA
Current - Supply (Max)	25 mA
PSRR	75dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223-3
