MIC4422CTL3

In Stock: 7,761

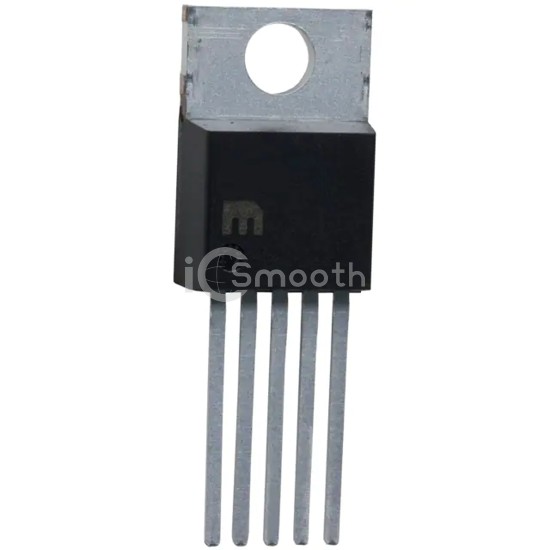

MIC4422CTL3 - Microchip Technology - PMIC - Gate Drivers
REF: MIC4422CTL3 Microchip Technology
MIC4422CTL3

Microchip Technology

IC GATE DRVR LOW-SIDE TO220-5

MIC4422CTL3 is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE TO220-5. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case TO-220-5.

Request a Quote

In Stock: 7,761

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)9A, 9A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)20ns, 24ns
Operating Temperature0°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-5
Supplier Device PackageTO-220-5
