Name: MIC3809BMM-TR
Brand: Microchip Technology
SKU: MIC3809BMM-TR
Price: 1.16 USD
Availability: InStock

REF: MIC3809BMM-TR Microchip Technology

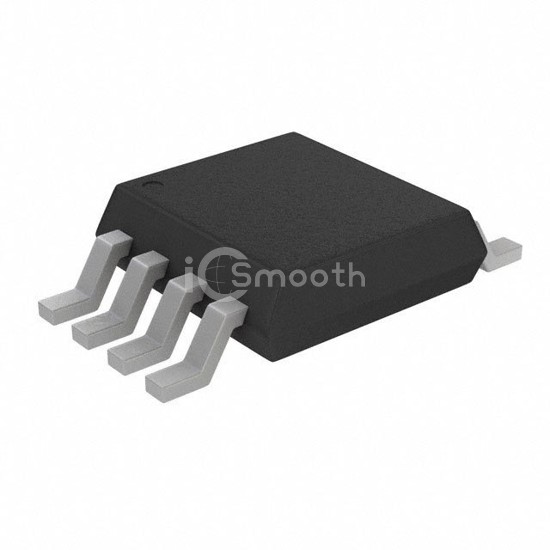

MIC3809BMM-TR

Microchip Technology

IC REG CTRLR MULT TOPOLOGY 8MSOP

MIC3809BMM-TR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR MULT TOPOLOGY 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.1V ~ 14V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).

Datasheet Request a Quote

In Stock: 3,469

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.1V ~ 14V
Frequency - Switching	200kHz

Duty Cycle (Max)	49%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Frequency Control
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package	8-MSOP
