MIC2214-AAYML-TR

In Stock: 2,334

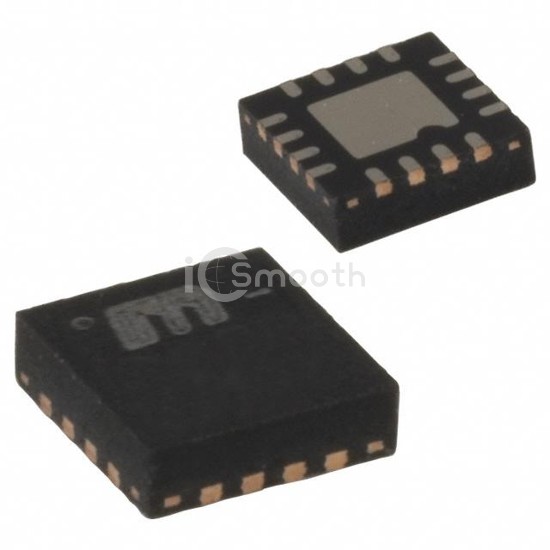

MIC2214-AAYML-TR - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: MIC2214-AAYML-TR Microchip Technology
MIC2214-AAYML-TR

Microchip Technology

IC REG LINEAR POS ADJ 16MLF

MIC2214-AAYML-TR is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR POS ADJ 16MLF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-VQFN Exposed Pad, 16-MLF®, current - output 150mA, 300mA.

Datasheet Request a Quote

In Stock: 2,334

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators2
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)5.5V
Voltage Dropout (Max)0.25V @ 150mA, 0.42V @ 300mA
Current - Output150mA, 300mA
Current - Quiescent (Iq)80 µA
Current - Supply (Max)-
PSRR60dB ~ 40dB (1KHz ~ 20kHz)
Control FeaturesEnable, Power On Reset
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad, 16-MLF®
Supplier Device Package16-MLF® (4x4)
