MD1812K6-G

In Stock: 8,400

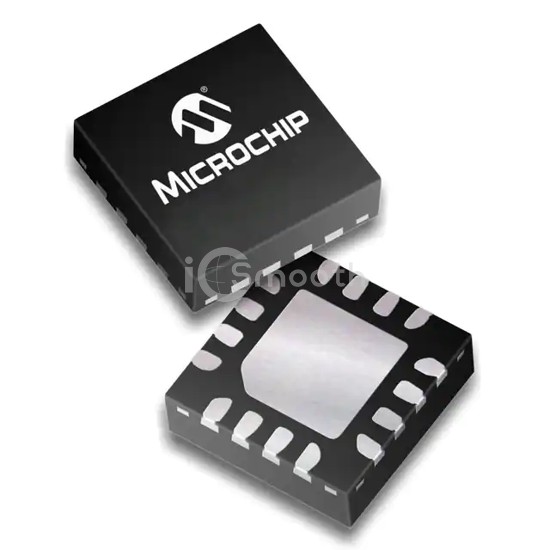

MD1812K6-G - Microchip Technology - PMIC - Gate Drivers
REF: MD1812K6-G Microchip Technology
MD1812K6-G

Microchip Technology

IC GATE DRVR HALF-BRIDGE 16QFN

MD1812K6-G is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HALF-BRIDGE 16QFN. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 125°C (TA), voltage - supply 4.5V ~ 13V, package / case 16-VQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,400

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers4
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 13V
Logic Voltage - VIL, VIH0.3V, 1.7V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)6ns, 6ns
Operating Temperature-25°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad
Supplier Device Package16-QFN (4x4)
