MCP6569T-E/ST

In Stock: 6

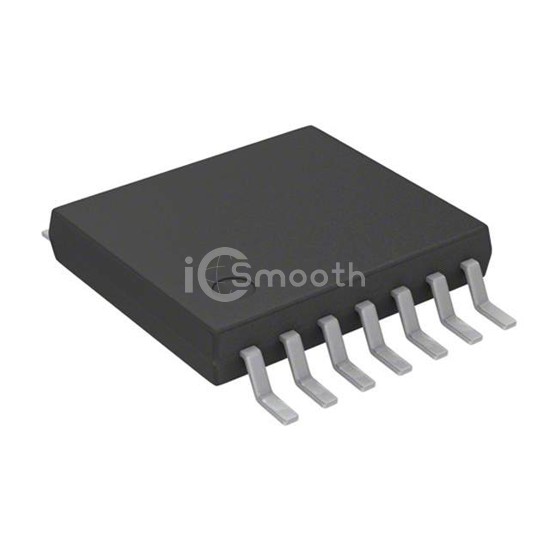

MCP6569T-E/ST - Microchip Technology - Linear - Comparators
REF: MCP6569T-E/ST Microchip Technology
MCP6569T-E/ST

Microchip Technology

IC COMP QUAD 1.8V OD 14-TSSOP

MCP6569T-E/ST is a Linear - Comparators manufactured by Microchip Technology. IC COMP QUAD 1.8V OD 14-TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-TSSOP (0.173", 4.40mm Width), output type CMOS, Open-Drain.

Datasheet Request a Quote

In Stock: 6

Tiered Pricing USD
1+ $1.5700 —
25+ $1.3100 -17%
100+ $1.1900 -24% BEST

Specifications

16 parameters
Product StatusActive
TypeGeneral Purpose
Number of Elements4
Output TypeCMOS, Open-Drain
Voltage - Supply, Single/Dual (±)1.8V ~ 5.5V
Voltage - Input Offset (Max)10mV @ 5.5V
Current - Input Bias (Max)1pA @ 5.5V
Current - Output (Typ)50mA
Current - Quiescent (Max)130µA
CMRR, PSRR (Typ)66dB CMRR, 70dB PSRR
Propagation Delay (Max)80ns
Hysteresis5mV
Operating Temperature-40°C ~ 125°C
Package / Case14-TSSOP (0.173", 4.40mm Width)
Mounting TypeSurface Mount
Supplier Device Package14-TSSOP
