Name: MCP6569-E/SL
Brand: Microchip Technology
SKU: MCP6569-E/SL
Price: 1.57 USD
Availability: InStock

REF: MCP6569-E/SL Microchip Technology

MCP6569-E/SL

Microchip Technology

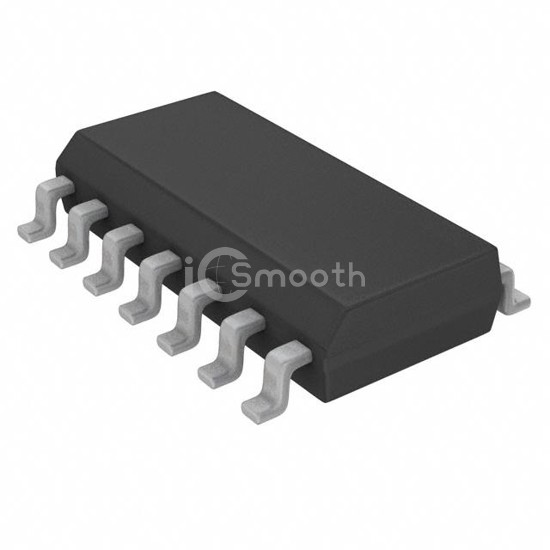

IC COMP QUAD 1.8V OD 14-SOIC

MCP6569-E/SL is a Linear - Comparators manufactured by Microchip Technology. IC COMP QUAD 1.8V OD 14-SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.154", 3.90mm Width), output type CMOS, Open-Drain.

Datasheet Request a Quote

In Stock: 349

Tiered Pricing USD

1+ $1.5700 —

25+ $1.3100 -17%

100+ $1.1900 -24% BEST

Specifications

16 parameters

Product Status	Active
Type	General Purpose
Number of Elements	4
Output Type	CMOS, Open-Drain
Voltage - Supply, Single/Dual (±)	1.8V ~ 5.5V
Voltage - Input Offset (Max)	10mV @ 5.5V
Current - Input Bias (Max)	1pA @ 5.5V
Current - Output (Typ)	50mA

Current - Quiescent (Max)	130µA
CMRR, PSRR (Typ)	66dB CMRR, 70dB PSRR
Propagation Delay (Max)	80ns
Hysteresis	5mV
Operating Temperature	-40°C ~ 125°C
Package / Case	14-SOIC (0.154", 3.90mm Width)
Mounting Type	Surface Mount
Supplier Device Package	14-SOIC
