Name: MCP6564T-E/ST
Brand: Microchip Technology
SKU: MCP6564T-E/ST
Price: 1.57 USD
Availability: InStock

REF: MCP6564T-E/ST Microchip Technology

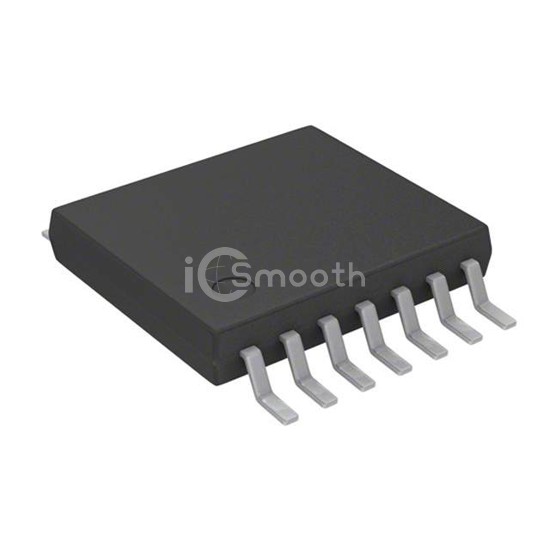

MCP6564T-E/ST

Microchip Technology

IC COMP QUAD 1.8V PP 14-TSSOP

MCP6564T-E/ST is a Linear - Comparators manufactured by Microchip Technology. IC COMP QUAD 1.8V PP 14-TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-TSSOP (0.173", 4.40mm Width), output type CMOS, Push-Pull, Rail-to-Rail, TTL.

Datasheet Request a Quote

In Stock: 1,382

Tiered Pricing USD

1+ $1.5700 —

25+ $1.3100 -17%

100+ $1.1900 -24% BEST

Specifications

16 parameters

Product Status	Active
Type	General Purpose
Number of Elements	4
Output Type	CMOS, Push-Pull, Rail-to-Rail, TTL
Voltage - Supply, Single/Dual (±)	1.8V ~ 5.5V
Voltage - Input Offset (Max)	10mV @ 5.5V
Current - Input Bias (Max)	1pA @ 5.5V
Current - Output (Typ)	50mA

Current - Quiescent (Max)	130µA
CMRR, PSRR (Typ)	66dB CMRR, 70dB PSRR
Propagation Delay (Max)	80ns
Hysteresis	5mV
Operating Temperature	-40°C ~ 125°C
Package / Case	14-TSSOP (0.173", 4.40mm Width)
Mounting Type	Surface Mount
Supplier Device Package	14-TSSOP
