Name: MCP4922-E/STVAO
Brand: Microchip Technology
SKU: MCP4922-E/STVAO
Availability: InStock

REF: MCP4922-E/STVAO Microchip Technology

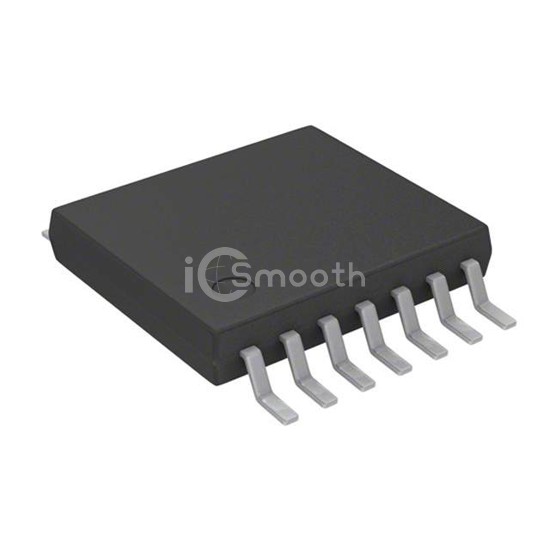

MCP4922-E/STVAO

IC DAC 12BIT V-OUT 14TSSOP

MCP4922-E/STVAO is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Microchip Technology. IC DAC 12BIT V-OUT 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 14-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 1,197

Specifications

16 parameters

Product Status	Active
Number of Bits	12
Number of D/A Converters	2
Settling Time	4.5µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI
Reference Type	External

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±4, ±0.25
Architecture	String DAC
Operating Temperature	-40°C ~ 125°C
Package / Case	14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	14-TSSOP
Mounting Type	Surface Mount
