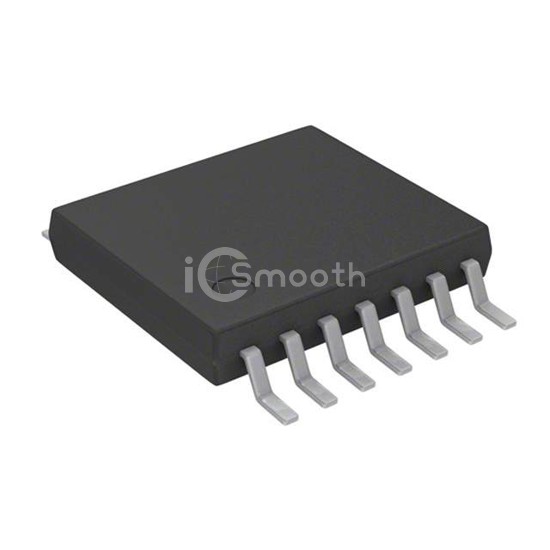

Name: MCP4922-E/ST
Brand: Microchip Technology
SKU: MCP4922-E/ST
Price: 3.47 USD
Availability: InStock

REF: MCP4922-E/ST Microchip Technology

MCP4922-E/ST

Microchip Technology

IC DAC 12BIT V-OUT 14TSSOP

MCP4922-E/ST is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Microchip Technology. IC DAC 12BIT V-OUT 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 14-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 4,685

Tiered Pricing USD

1+ $3.4700 —

25+ $2.9000 -16%

100+ $2.6400 -24% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	12
Number of D/A Converters	2
Settling Time	4.5µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI
Reference Type	External

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±4, ±0.25
Architecture	String DAC
Operating Temperature	-40°C ~ 125°C
Package / Case	14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	14-TSSOP
Mounting Type	Surface Mount
