Name: MCP4811-E/MC
Brand: Microchip Technology
SKU: MCP4811-E/MC
Price: 2.15 USD
Availability: InStock

REF: MCP4811-E/MC Microchip Technology

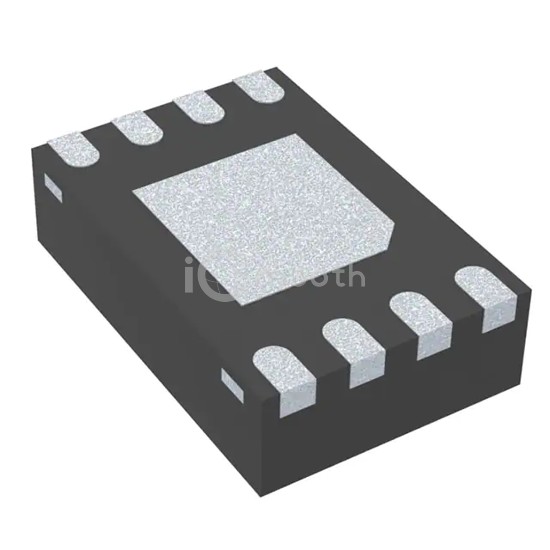

MCP4811-E/MC

Microchip Technology

IC DAC 10BIT V-OUT 8DFN

MCP4811-E/MC is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Microchip Technology. IC DAC 10BIT V-OUT 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 8-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,813

Tiered Pricing USD

1+ $2.1500 —

25+ $1.8000 -16%

100+ $1.6200 -25% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	10
Number of D/A Converters	1
Settling Time	4.5µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI
Reference Type	Internal

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±1, ±0.2
Architecture	String DAC
Operating Temperature	-40°C ~ 125°C
Package / Case	8-VFDFN Exposed Pad
Supplier Device Package	8-DFN (2x3)
Mounting Type	Surface Mount
