Name: MCP47CMB22-E/MG
Brand: Microchip Technology
SKU: MCP47CMB22-E/MG
Price: 3.51 USD
Availability: InStock

REF: MCP47CMB22-E/MG Microchip Technology

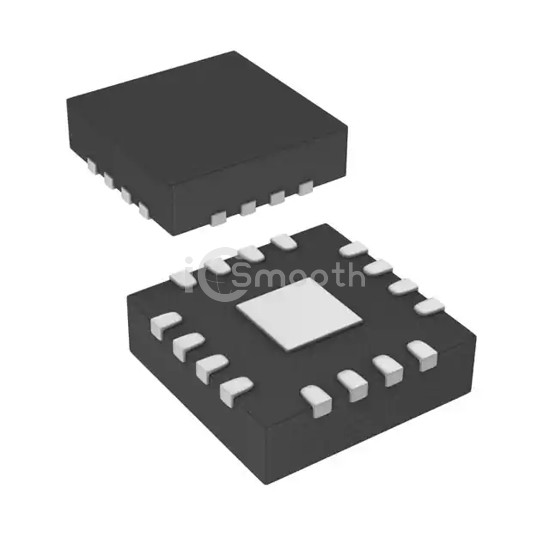

MCP47CMB22-E/MG

Microchip Technology

IC DAC 12BIT V-OUT 16QFN

MCP47CMB22-E/MG is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Microchip Technology. IC DAC 12BIT V-OUT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 1.8V ~ 5.5V, package / case 16-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 155

Tiered Pricing USD

1+ $3.5100 —

25+ $2.9200 -17%

100+ $2.6600 -24% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	12
Number of D/A Converters	2
Settling Time	16µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	I²C
Reference Type	External, Internal

Voltage - Supply, Analog	1.8V ~ 5.5V
Voltage - Supply, Digital	1.8V ~ 5.5V
INL/DNL (LSB)	±1, ±1
Architecture	Current Source
Operating Temperature	-40°C ~ 125°C
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-QFN (3x3)
Mounting Type	Surface Mount
