Name: MCP3561RT-E/NC
Brand: Microchip Technology
SKU: MCP3561RT-E/NC
Price: 3.00 USD
Availability: InStock

REF: MCP3561RT-E/NC Microchip Technology

MCP3561RT-E/NC

Microchip Technology

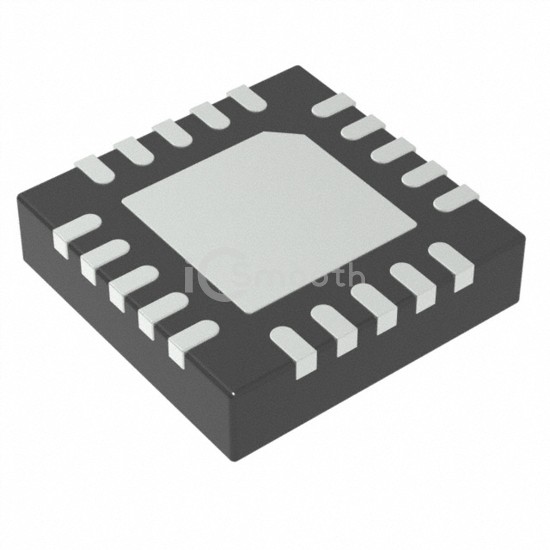

IC ADC 24BIT SIGMA-DELTA 20UQFN

MCP3561RT-E/NC is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Microchip Technology. IC ADC 24BIT SIGMA-DELTA 20UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 1.8V ~ 3.7V, package / case 20-UFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 564

Tiered Pricing USD

1+ $3.0000 —

25+ $2.5000 -17%

100+ $2.2800 -24% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	24
Sampling Rate (Per Second)	153.6k
Number of Inputs	1
Input Type	Differential, Single Ended
Data Interface	SPI
Configuration	MUX-ADC
Ratio - S/H:ADC	0:1
Number of A/D Converters	1

Architecture	Sigma-Delta
Reference Type	-
Voltage - Supply, Analog	2.7V ~ 3.6V
Voltage - Supply, Digital	1.8V ~ 3.7V
Features	Internal Oscillator, Temperature Sensor
Operating Temperature	-40°C ~ 125°C
Package / Case	20-UFQFN Exposed Pad
Supplier Device Package	20-UQFN (3x3)
Mounting Type	Surface Mount
