Name: MCP3204-BI/SL
Brand: Microchip Technology
SKU: MCP3204-BI/SL
Price: 5.22 USD
Availability: InStock

REF: MCP3204-BI/SL Microchip Technology

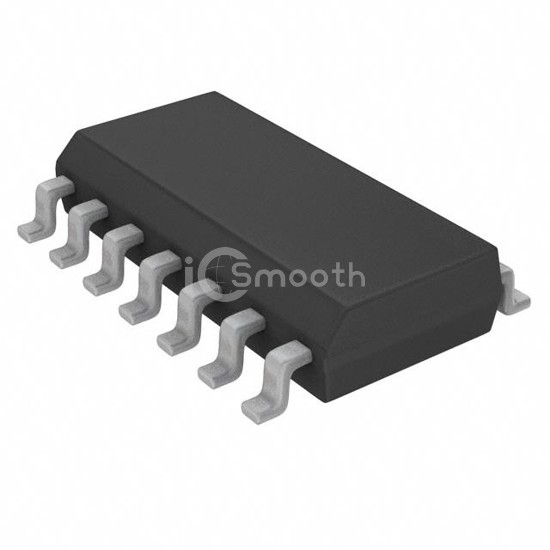

MCP3204-BI/SL

Microchip Technology

IC ADC 12BIT SAR 14SOIC

MCP3204-BI/SL is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Microchip Technology. IC ADC 12BIT SAR 14SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 7,129

Tiered Pricing USD

1+ $5.2200 —

25+ $4.3600 -16%

100+ $3.9600 -24% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	100k
Number of Inputs	2, 4
Input Type	Pseudo-Differential, Single Ended
Data Interface	SPI
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External
Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOIC
Mounting Type	Surface Mount
