MCP1825T-0802E/DC

In Stock: 7,609

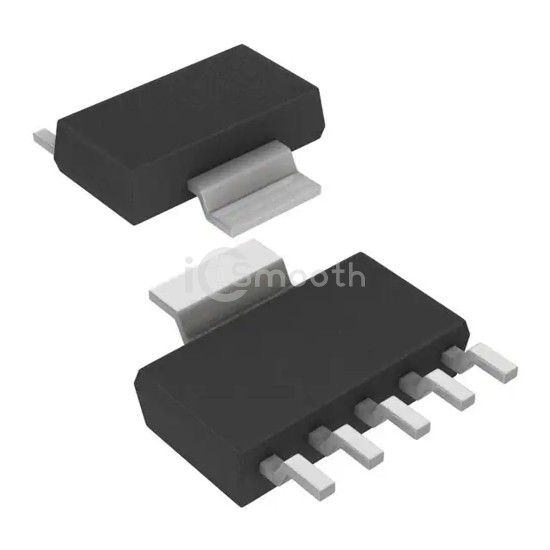

MCP1825T-0802E/DC - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: MCP1825T-0802E/DC Microchip Technology
MCP1825T-0802E/DC

Microchip Technology

IC REG LIN 0.8V 500MA SOT223-5

MCP1825T-0802E/DC is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LIN 0.8V 500MA SOT223-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case SOT-223-6, current - output 500mA.

Datasheet Request a Quote

In Stock: 7,609

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)-
Voltage Dropout (Max)0.35V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)220 µA
Current - Supply (Max)-
PSRR60dB (100Hz)
Control FeaturesEnable, Power Good
Protection FeaturesOver Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSOT-223-6
Supplier Device PackageSOT-223-5
