Name: MCP1811BT-010/7QX
Brand: Microchip Technology
SKU: MCP1811BT-010/7QX
Availability: InStock

REF: MCP1811BT-010/7QX Microchip Technology

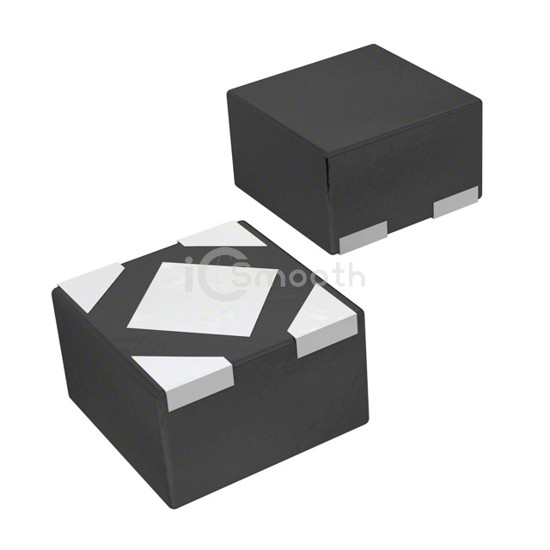

MCP1811BT-010/7QX

IC REG LINEAR 1V 150MA 4UQFN

MCP1811BT-010/7QX is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 1V 150MA 4UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 4-UDFN Exposed Pad, current - supply (max) 110 µA.

Datasheet Request a Quote

In Stock: 4,530

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.6V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	0.5 µA
Current - Supply (Max)	110 µA
PSRR	50dB (1kHz)
Control Features	Enable
Protection Features	Over Current
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-UDFN Exposed Pad
Supplier Device Package	4-UQFN (1x1)
