Name: MCP1793T-3302H/DCVAO
Brand: Microchip Technology
SKU: MCP1793T-3302H/DCVAO
Price: 1.22 USD
Availability: InStock

REF: MCP1793T-3302H/DCVAO Microchip Technology

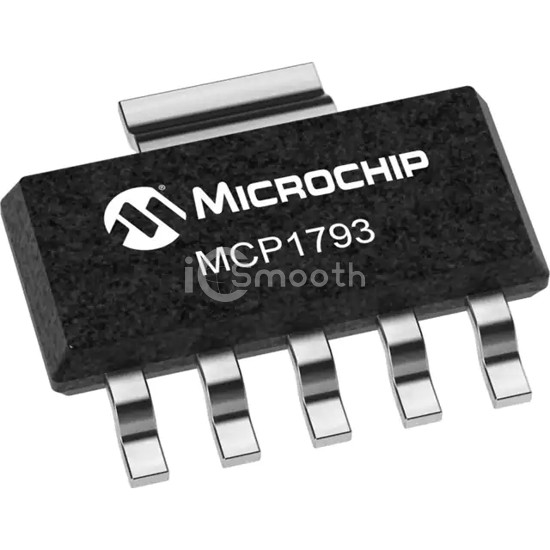

MCP1793T-3302H/DCVAO

Microchip Technology

IC REG LIN 3.3V 100MA SOT223-5

MCP1793T-3302H/DCVAO is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LIN 3.3V 100MA SOT223-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TA), package / case SOT-223-6, current - supply (max) 150 µA.

Datasheet Request a Quote

In Stock: 5,238

Tiered Pricing USD

1+ $1.2200 —

25+ $1.0200 -16%

100+ $0.9750 -20% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	55V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.2V @ 100mA
Current - Output	100mA

Current - Quiescent (Iq)	45 µA
Current - Supply (Max)	150 µA
PSRR	80dB ~ 55dB (100Hz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 150°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Supplier Device Package	SOT-223-5
