MCP1791T-3002E/DC

In Stock: 3,740

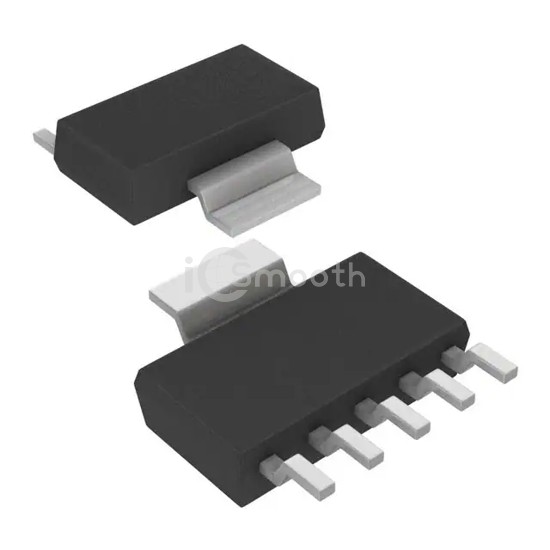

MCP1791T-3002E/DC - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: MCP1791T-3002E/DC Microchip Technology
MCP1791T-3002E/DC

Microchip Technology

IC REG LINEAR 3V 70MA SOT223-5

MCP1791T-3002E/DC is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 3V 70MA SOT223-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case SOT-223-6, current - supply (max) 210 µA.

Datasheet Request a Quote

In Stock: 3,740

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)30V
Voltage - Output (Min/Fixed)3V
Voltage - Output (Max)-
Voltage Dropout (Max)1.3V @ 70mA
Current - Output70mA
Current - Quiescent (Iq)130 µA
Current - Supply (Max)210 µA
PSRR90dB ~ 80dB (100Hz ~ 1kHz)
Control FeaturesEnable, Power Good
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSOT-223-6
Supplier Device PackageSOT-223-5
