MCP1755T-3302E/MC

In Stock: 8,343

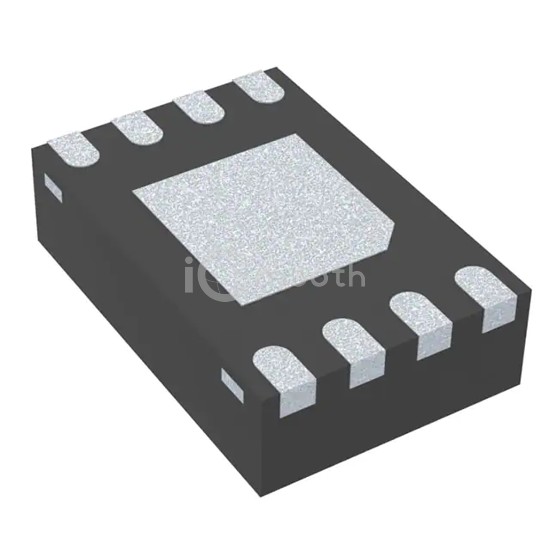

MCP1755T-3302E/MC - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: MCP1755T-3302E/MC Microchip Technology
MCP1755T-3302E/MC

Microchip Technology

IC REG LINEAR 3.3V 300MA 8DFN

MCP1755T-3302E/MC is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 3.3V 300MA 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VFDFN Exposed Pad, current - supply (max) 400 µA.

Datasheet Request a Quote

In Stock: 8,343

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)16V
Voltage - Output (Min/Fixed)3.3V
Voltage - Output (Max)-
Voltage Dropout (Max)0.5V @ 300mA
Current - Output300mA
Current - Quiescent (Iq)100 µA
Current - Supply (Max)400 µA
PSRR80dB (1kHz)
Control FeaturesEnable, Power Good
Protection FeaturesOver Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-VFDFN Exposed Pad
Supplier Device Package8-DFN (2x3)
