MCP1754ST-5002E/MC

In Stock: 8,990

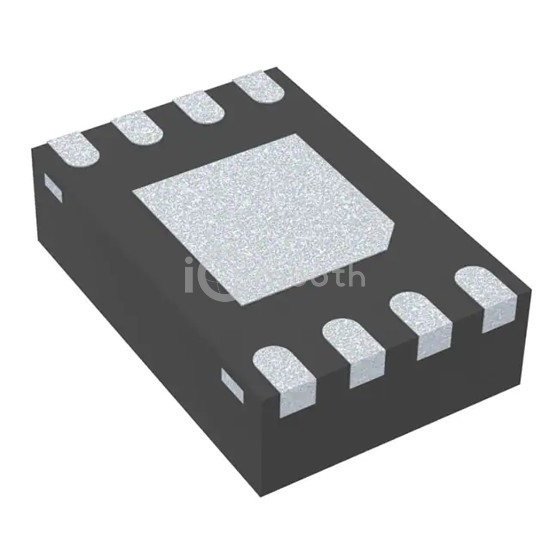

MCP1754ST-5002E/MC - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: MCP1754ST-5002E/MC Microchip Technology
MCP1754ST-5002E/MC

Microchip Technology

IC REG LINEAR 5V 150MA 8DFN

MCP1754ST-5002E/MC is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 5V 150MA 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VFDFN Exposed Pad, current - supply (max) 250 µA.

Datasheet Request a Quote

In Stock: 8,990

Tiered Pricing USD
1+ $0.7700 —
25+ $0.6500 -16% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)16V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.5V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)90 µA
Current - Supply (Max)250 µA
PSRR72dB (1kHz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-VFDFN Exposed Pad
Supplier Device Package8-DFN (2x3)
