MCP1703T-5002E/MC

In Stock: 1,780

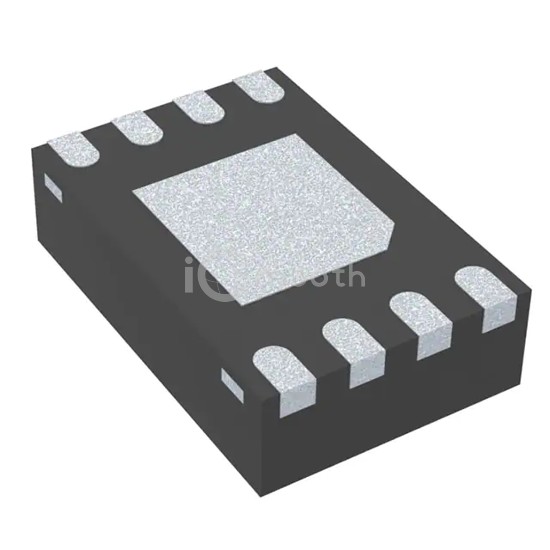

MCP1703T-5002E/MC - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: MCP1703T-5002E/MC Microchip Technology
MCP1703T-5002E/MC

Microchip Technology

IC REG LINEAR 5V 250MA 8DFN

MCP1703T-5002E/MC is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 5V 250MA 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VFDFN Exposed Pad, current - output 250mA.

Datasheet Request a Quote

In Stock: 1,780

Tiered Pricing USD
1+ $0.8200 —
25+ $0.6900 -16%
100+ $0.6200 -24% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)16V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.65V @ 250mA
Current - Output250mA
Current - Quiescent (Iq)5 µA
Current - Supply (Max)-
PSRR44dB (100Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-VFDFN Exposed Pad
Supplier Device Package8-DFN (2x3)
