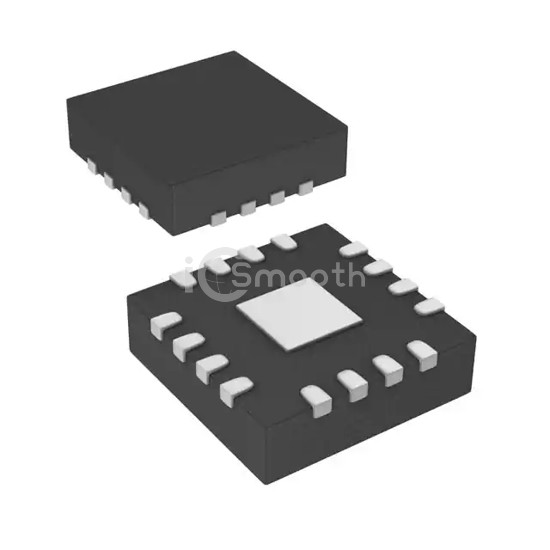

Name: MCP1633-E/MG
Brand: Microchip Technology
SKU: MCP1633-E/MG
Price: 2.12 USD
Availability: InStock

REF: MCP1633-E/MG Microchip Technology

MCP1633-E/MG

Microchip Technology

HIGH SPEED PWM CONTROLLER W/ DIM

MCP1633-E/MG is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. HIGH SPEED PWM CONTROLLER W/ DIM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 16-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 383

Tiered Pricing USD

1+ $2.1200 —

25+ $1.7700 -17%

100+ $1.6100 -24% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, Cuk, Flyback, SEPIC
Number of Outputs	1
Output Phases	-
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V
Frequency - Switching	200kHz ~ 2.2MHz

Duty Cycle (Max)	90%
Synchronous Rectifier	No
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Soft Start
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-QFN (3x3)
