MCP14A1202T-E/MNYVAO

In Stock: 6,992

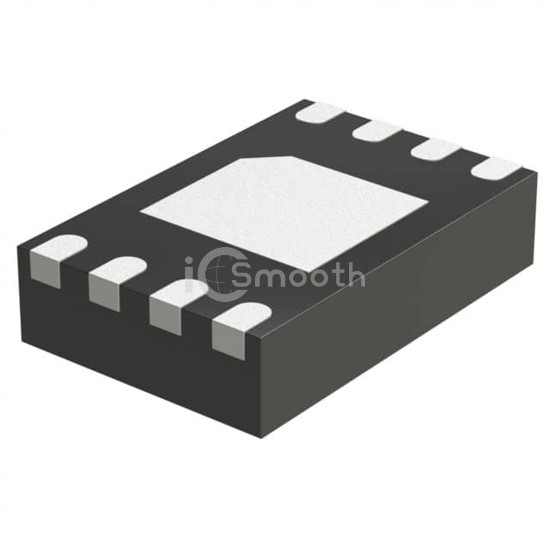

MCP14A1202T-E/MNYVAO - Microchip Technology - PMIC - Gate Drivers
REF: MCP14A1202T-E/MNYVAO Microchip Technology
MCP14A1202T-E/MNYVAO

Microchip Technology

12.0A SINGLE MOSFET DRIVER

MCP14A1202T-E/MNYVAO is a PMIC - Gate Drivers manufactured by Microchip Technology. 12.0A SINGLE MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,992

Specifications

15 parameters
Product StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)12A, 12A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)25ns, 25ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case8-WFDFN Exposed Pad
Supplier Device Package8-TDFN (2x3)
