MCP14A0902T-E/MNY

In Stock: 5,646

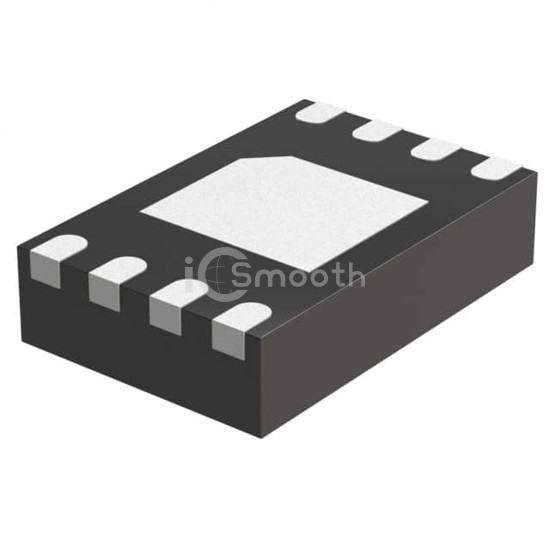

MCP14A0902T-E/MNY - Microchip Technology - PMIC - Gate Drivers
REF: MCP14A0902T-E/MNY Microchip Technology
MCP14A0902T-E/MNY

Microchip Technology

IC GATE DRVR HI/LOW SIDE 8TDFN

MCP14A0902T-E/MNY is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 8TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,646

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side or Low-Side
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)9A, 9A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)22ns, 22ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case8-WFDFN Exposed Pad
Supplier Device Package8-TDFN (2x3)
