Name: MCP14A0302T-E/KBA
Brand: Microchip Technology
SKU: MCP14A0302T-E/KBA
Price: 1.11 USD
Availability: InStock

REF: MCP14A0302T-E/KBA Microchip Technology

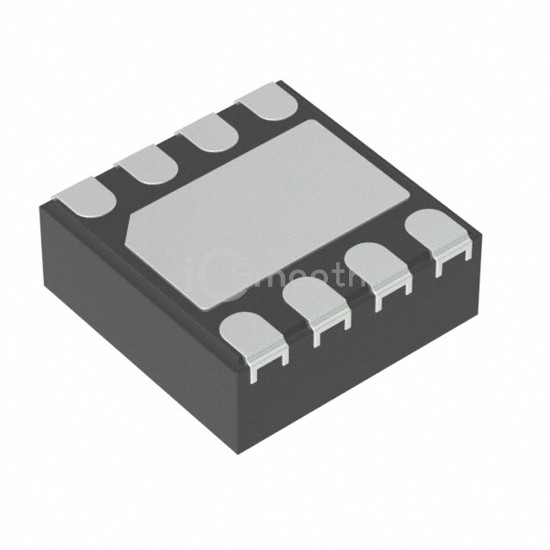

MCP14A0302T-E/KBA

Microchip Technology

IC GATE DRVR HI/LOW SIDE 8WDFN

MCP14A0302T-E/KBA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 8WDFN. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,090

Tiered Pricing USD

1+ $1.1100 —

25+ $0.9200 -17%

100+ $0.8300 -25% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	High-Side or Low-Side
Channel Type	Single
Number of Drivers	1
Gate Type	IGBT
Voltage - Supply	4.5V ~ 18V
Logic Voltage - VIL, VIH	0.8V, 2V
Current - Peak Output (Source, Sink)	3A, 3A

Input Type	Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	13ns, 12ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	8-WFDFN Exposed Pad
Supplier Device Package	8-WDFN (2x2)
