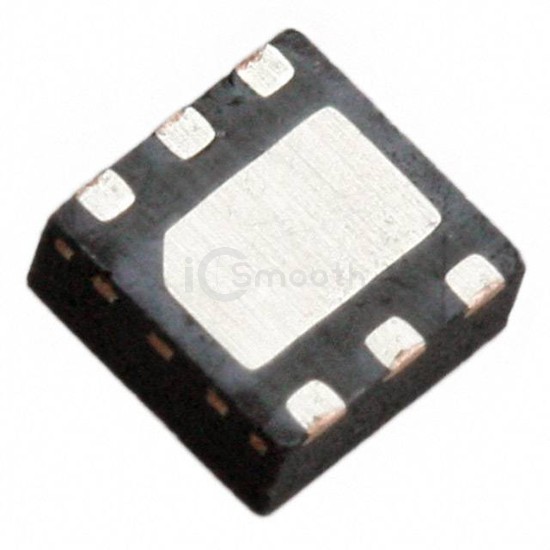

MCP14A0152T-E/MAY

In Stock: 8,051
MCP14A0152T-E/MAY - Microchip Technology - PMIC - Gate Drivers
REF: MCP14A0152T-E/MAY Microchip Technology
MCP14A0152T-E/MAY

Microchip Technology

IC GATE DRV HI-SIDE/LO-SIDE 6DFN

MCP14A0152T-E/MAY is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRV HI-SIDE/LO-SIDE 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 6-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,051

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)1.5A, 1.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)11.5ns, 10ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad
Supplier Device Package6-DFN (2x2)
