MCP1406-E/AT

In Stock: 208

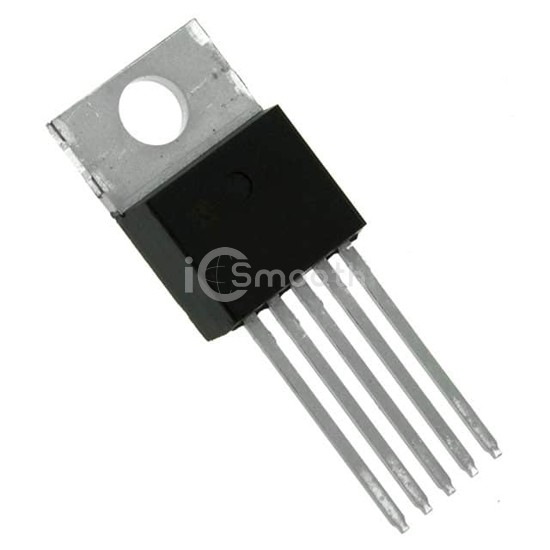

MCP1406-E/AT - Microchip Technology - PMIC - Gate Drivers
REF: MCP1406-E/AT Microchip Technology
MCP1406-E/AT

Microchip Technology

IC GATE DRVR LOW-SIDE TO220-5

MCP1406-E/AT is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case TO-220-5.

Datasheet Request a Quote

In Stock: 208

Specifications

15 parameters
Product StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)6A, 6A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)20ns, 20ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / CaseTO-220-5
Supplier Device PackageTO-220-5
