Name: MAQ5300-3.0YML-TRVAO
Brand: Microchip Technology
SKU: MAQ5300-3.0YML-TRVAO
Availability: InStock

REF: MAQ5300-3.0YML-TRVAO Microchip Technology

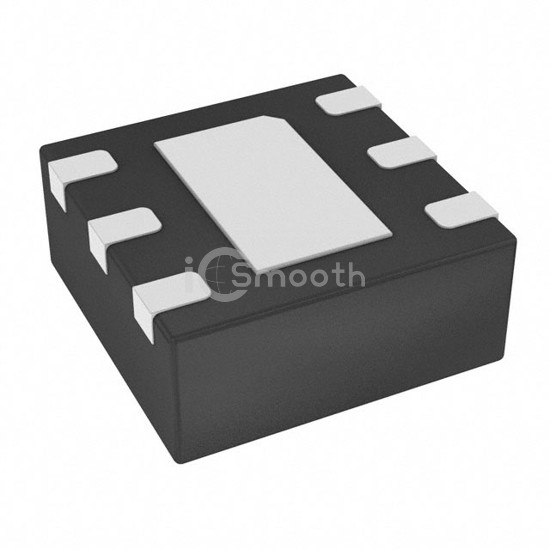

MAQ5300-3.0YML-TRVAO

IC REG LINEAR 3V 300MA 6DFN

MAQ5300-3.0YML-TRVAO is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 3V 300MA 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-VDFN Exposed Pad, 6-MLF®, current - output 300mA.

Datasheet Request a Quote

In Stock: 7,166

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.2V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	120 µA
Current - Supply (Max)	-
PSRR	65dB ~ 42dB (1kHz ~ 20kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad, 6-MLF®
Supplier Device Package	6-DFN (2x2)
