JANTXV2N3057A

In Stock: 4,478

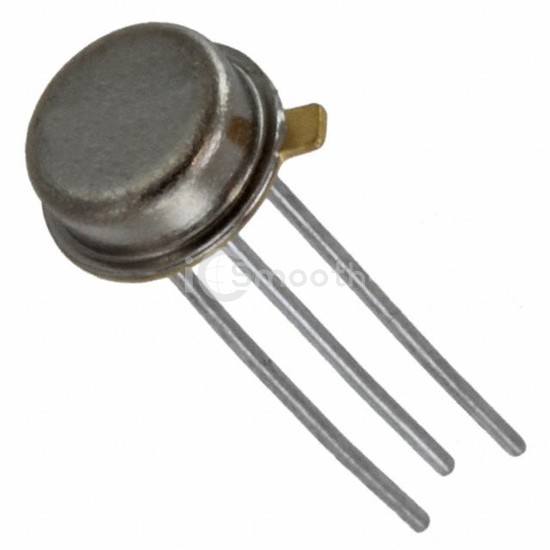

JANTXV2N3057A - Microchip Technology - Transistors - Bipolar (BJT) - Single
REF: JANTXV2N3057A Microchip Technology
JANTXV2N3057A

Microchip Technology

TRANS NPN 80V 1A TO46-3

JANTXV2N3057A is a Transistors - Bipolar (BJT) - Single manufactured by Microchip Technology. TRANS NPN 80V 1A TO46-3. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-206AB, TO-46-3 Metal Can, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 4,478

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)10nA
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 500mA, 10V
Power - Max500 mW
Frequency - Transition-
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-206AB, TO-46-3 Metal Can
Supplier Device PackageTO-46-3
