Name: JANTXV2N2946A
Brand: Microchip Technology
SKU: JANTXV2N2946A
Availability: InStock

REF: JANTXV2N2946A Microchip Technology

JANTXV2N2946A

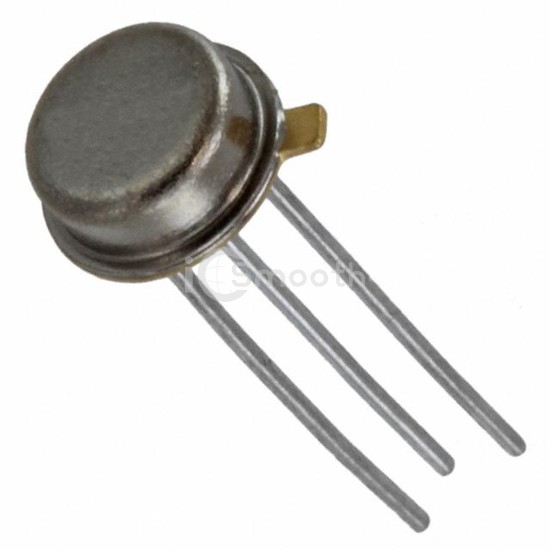

TRANS PNP 35V 0.1A TO46

JANTXV2N2946A is a Transistors - Bipolar (BJT) - Single manufactured by Microchip Technology. TRANS PNP 35V 0.1A TO46. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-206AB, TO-46-3 Metal Can, current - collector (ic) (max) 100 mA.

Datasheet Request a Quote

In Stock: 7,469

Specifications

13 parameters

Product Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	35 V
Vce Saturation (Max) @ Ib, Ic	-
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 1mA, 500mV

Power - Max	400 mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-206AB, TO-46-3 Metal Can
Supplier Device Package	TO-46 (TO-206AB)
