JANTX2N5303

In Stock: 2,648

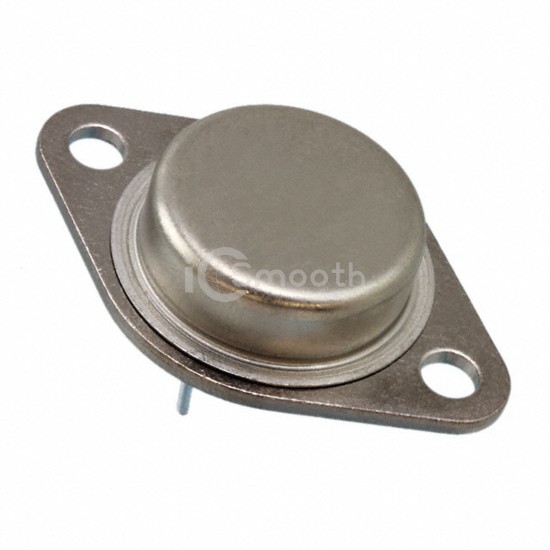

JANTX2N5303 - Microchip Technology - Transistors - Bipolar (BJT) - Single
REF: JANTX2N5303 Microchip Technology
JANTX2N5303

Microchip Technology

TRANS NPN 80V 20A TO3

JANTX2N5303 is a Transistors - Bipolar (BJT) - Single manufactured by Microchip Technology. TRANS NPN 80V 20A TO3. Key specifications: mounting type Through Hole, package / case TO-204AA, TO-3, current - collector (ic) (max) 20 A, power - max 5 W.

Datasheet Request a Quote

In Stock: 2,648

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)20 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic2V @ 4A, 20A
Current - Collector Cutoff (Max)10µA
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 10A, 2V
Power - Max5 W
Frequency - Transition-
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-3 (TO-204AA)
